GPS Log Book – LiVE

GPS Log Book – LiVE

GPS Log Book – LiVE

R899.00

* All prices include VAT
* Excludes delivery charges, which will be calculated in the next step

In stock
Product Details

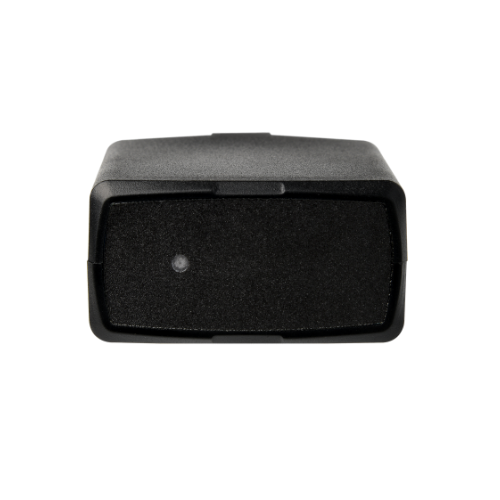

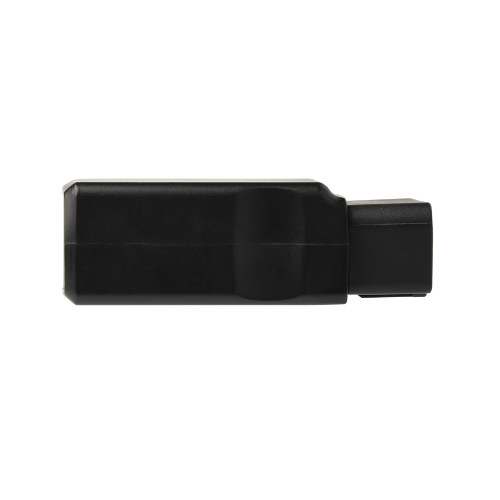

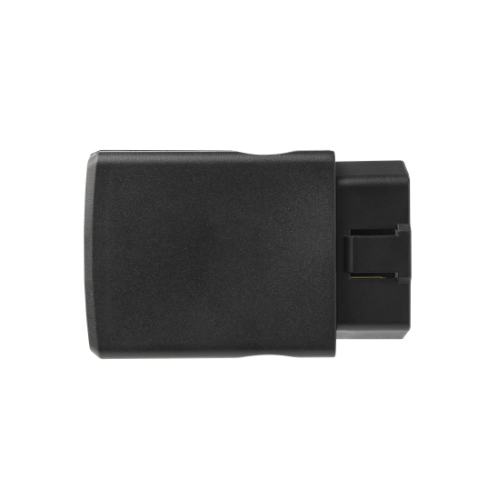

The GPS Log Book LIVE device plugs into your vehicle’s OBDII port, tracking the use of your vehicle while also featuring live GPS vehicle tracking for theft recovery and automatic data upload.

– High-Accuracy GPS
– Plugs into your vehicle’s OBDII port, right under your dashboard
– Features live GPS vehicle tracking for theft recovery
– See vehicle location, direction, speed, position, and more in real-time on Google Maps
– Automatic Data Upload
– SARS-Compliant Reporting
– Monthly subscription of R112. Subscription activated upon device registration.

Features

High-Accuracy
GPS

Plug-and-Play
Wire Free

Live GPS Tracking

Automatic Data Upload

SARS-Compliant
Reporting

GSM (2G)
Cellular Technology

LiVE on Google Maps

Perfect for small fleets and sales teams, the GPS Log Book LiVE enables users to track their vehicles’ every movement as they happen! Monitor your vehicle’s every move from:

Direction

Speed and Position

Trip Status

Last Location and more

Direction

Speed and Position

Trip Status

Last Location and more

Web Interface

Designed to eliminate tedious administrative functions, our GPS Log Book Web Interface is the backbone of the GPS Log Book system emphasising quality, simplicity and customer satisfaction. Users are equipped to perform a variety of useful functions, from managing device/s, viewing trips and adding locations to create powerful and informative reports.

A key GPS Log Book differentiator is the ability for users to generate SARS compliant logbook reports for use with personal Income Tax Returns.

Data is securely stored in the cloud. This enables all users to view their trip history at any time and anywhere, from all major web browsers using our intuitive and trouble-free GPS Log Book Web Interface.

Secure HTTPS
website confidentiality

Create
location zones

Efficient trips
and data management

Email reminders of
important events

Google Map
Integration

Safe and secure
online store

Multiple devices/vehicles from
single login account

Data accessibility
anywhere, any time.

Automatic categorization
upon configuration

Logged data
is stored

Reports

There is a common saying that, if you cannot measure it, you cannot improve it. The GPS Log Book Web Interface allows users to create a multitude of powerful and first class reports generated from the data stored in the system, including a SARS compliant logbook.

Business Travel Claim

Download

Zone Detail Report

Download

Tax Business Trip Report

Download

Tax Detailed Report

Download

Tax Summary Report

Download

Trip List For All Vehicles

Download

GPS Log Book LiVE Product Specifications

Mechanical Specifications
Compact Housing: The compact polycarbonate housing snaps together for easy provisioning.
Dimensions: L 71 x W 46 x H 24 mm
Operating Temperature: -20°C to +60°C
Power
Input Voltage:

OBDII Power

Absolute Max 36V

Self-resetting fuse: The LiVE passes stringent automotive power “load dump” tests to ensure that it will continue to operate in the harshest electrical systems. A built-in self-resetting fuse makes installation easy and safe.
Other
Internal Memory: Sufficient memory to store over 50,000 records. Normally data is sent to the server immediately but if the device is out of range there is space to ensure no data is lost – for many weeks of driving.
3-axis accelerometer: Allows the LiVE to detect harsh driving events, and to go to ‘sleep’ when not moving, resulting in extremely low standby current.
Connectivity
SIM Size: Nano (4FF) size cellular SIM Card
2G or 4G: The LiVE can be manufactured for specific markets around the world
4G Modem:

UBLOX SARA-R410-02B
This modem can be configured to operate on either LTE-CatM1 or LTE-NB1 networks.

Supported LTE bands: 1-5, 6, 8, 12, 13, 17, 19, 20, 25, 26, 28

2G Modem: 2G: SARA-G350-02S-01
850/900/1800/1900 MHz
GPS Tracking
GPS and Cellular Antenna: Internal GPS and cellular antennas tuned by RF laboratories for optimal performance. Having antennas inside the housing makes for very simple and quick installation.
GPS/GLONASS tracking: UBLOX EVA-M8 GPS Module Concurrent GPS and GLONASS tracking 72 channel high sensitivity receiver – 167dBM industry-leading tracking performance.
AssistNow Offline: AssistNow Offline aiding data or extremely fast time-to-first-fix and performance in urban canyon environments.
Low Noise GPS Amplifier (LNA): GPS signals are boosted by a special low-noise amplifier (LNA). This allows operation where normal units will fail to receive GPS signal.
Firmware Smarts
OTA Configuration: The LiVE can be remotely configured and updated OTA (over the air). Device management is performed from Digital Matter’s OEM Server device management platform.
Auto-APN: Auto-APN allows the LiVE to analyse the SIM card and select the correct APN details from a list that is preloaded in the device’s firmware.
Text Message Setup: The LiVE can be sent text messages to set the server and other details
Flexible Logging Parameters: The LiVE trip logging is flexible and can be configured to log based on a variety of parameters including Elapsed time, Distance travelled, Change in heading, Change in speed, On stationary, Accelerometer events (harsh driving)
